RS2000 EVO Expansor

More information about Data Capture by clicking on “Contact Us” and
downloading the PDF with the technical specifications.


Contact Us

Related Products:

Data Capture
EIA-485
ref. 100.0155.00

RS2000 EVO Expansor

cas-captacao-dados

Data Capture
EIA-485
ref. 100.0155.00

More information about Data Capture by clicking on “Contact Us” and downloading the PDF with the technical specifications.


Contact Us

Related Products:

Technical Specification

  • Network: EIA-485
  • Types of Connectors:
    • 22 way block connector
    • 5 way block connector
    • 16 way Minifit connector
  • Sensors: 3 Fase Sensors (65 ~ 280VAC)
  • Functionalities:
    • 2 Relay outputs (NA/NF)
    • 5 I/Os ports
    • A/D Conversors – 4 Simple ports or 2 with 12bit resolution
    • 1 Open Collector Output
    • 2 TTL Outputs
    • 5 GND Signals
  • Antenna: None
  • Average Power Consumption: 0,2W
  • Power Supply: 5VDC
  • Operating Temperature: 0ºC to +70ºC
  • Dimensions: 35 x 155 x 70
  • Weight: 140g
  • IP Code: IP50W

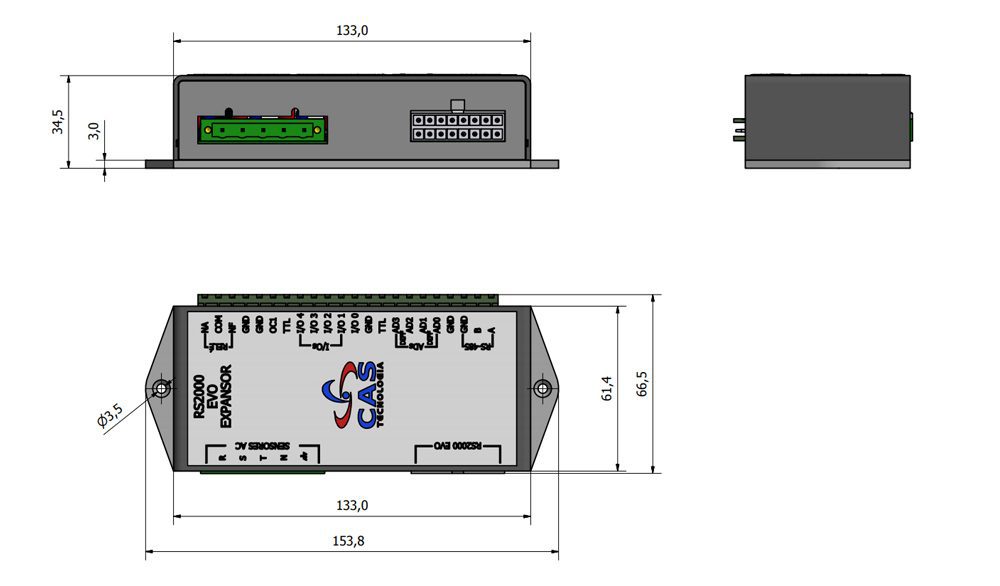

Technical Drawing
