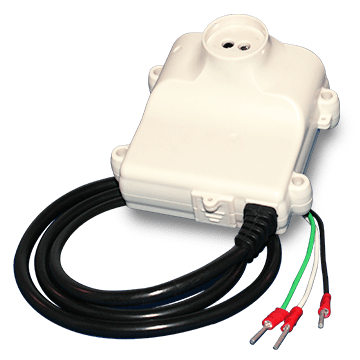

RS2000 Z-ABNT SMA

RS2000 Z-ABNT works collecting meters data by ABNT standard optical port and transmitting via ZigBee to a data gateway.

  • Metering and streaming data from ABNT meters through mesh network.
  • Wireless communication at 250 Kbits per second.
  • Data streaming security in RF communication protocol with 128-bit cryptographic key.
  • Powered by AC voltage between 85 and 264 Vac.


Contact Us

Data Transmission
ZigBee
ref. 100.0095.50

RS2000 Z-ABNT SMA

cas-captacao-dados

Data Transmission
ZigBee
ref. 100.0095.50

RS2000 Z-ABNT works collecting meters data by ABNT standard optical port and transmitting via ZigBee to a data gateway.

  • Metering and streaming data from ABNT meters through mesh network.
  • Wireless communication at 250 Kbits per second.
  • Data streaming security in RF communication protocol with 128-bit cryptographic key.
  • Powered by AC voltage between 85 and 264 Vac.


Contact Us

Technical Specification

  • Transmission Technology: ZigBee
  • Connector A: Optic Probe – ABNT Standard
  • Connector B: AC Power Input Cable
  • Connector C: Female RJ45 – Serial
  • Connector D: Female SMA
  • Frequency: 2.400~2.480MHz
  • Max Output power: Approximately 67mW
  • Antenna: External – SMA Connector
  • Average Power Consumption : 2,5W
  • Power Supply: 85~264 VCA
  • Operating Temperatur: 0 to +70ºC
  • Dimensions: 85x88x50mm
  • Weight: 200g
  • IP Code: IP50

Technical Drawing
